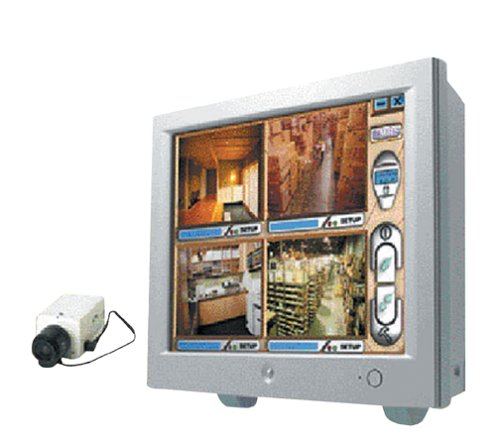

The Lorex DM-1440 4-port Digital Monitoring System lets you easily turn your PC into a video security monitoring system. The Lorex capture card and DMRS application software allows you to view up to four locations simultaneously on your PC to monitor and protect your business, office, or home. By loading the software on a second PC, you can also access the camera image remotely for total security protection. The DM-1440 system supports most any feature your camera(s) might possess. If movement is detected when using a motion sensor, an alarm will sound to alert you of potential trouble. The DM-1440 also allows you to program your system so that it automatically calls the telephone, cell phone, or pager number which you have designated, or this system can digitally record the event pictures to your PC's hard drive. Utilizing the JPEG format plus a proprietary algorithm, the four-port video capture card in the DM-1440 system allows you to view video with 320 by 240 pixels in high color (16 bit) per window, at a frame rate of five frames per second (frames per second). Additionally, the DM-1440 can save video at four frames per second, and can transmit video at one frames per second via a 33,600 bps (bits per second) modem or four frames per second via an Ethernet network connection.
Technical Features:
- Connections allowed: up to 4 simultaneous
- Resolution: 320 x 240 pixels per window
- Compression format: JPEG plus a proprietary algorithm
- Color: 16 bit high color
- Frame rate: 5 frames per second live, 4 frames per second while saving
- Transmission rate: 1 frames per second via modem, 4 frames per second via network
Designed to consolidate multiple video cameras into a single surveillance system with centralized control, the Lorex DM-1440 lets you view, set up and configure your cameras from a remote computer location with the TCP/IP or modem dial-up option so you can monitor and protect your business or home from across the hall or around the world. User's should note that to use the DMRS 1.4 application software and video capture card you must have at least: a PC with Pentium II 350 MHz processor and 64 MB RAM, Windows 98 or higher, a 16-bit VGA card, 36,000 bps voice modem, 800 by 600 high color display, eight-bit PCI sound card, and a CD ROM drive (for software installation). What's in the Box
DM-1440 4-port video capture card, software CD-ROM, owner's manual, and quick setup guide.
